SR 520 M/L
Art.nr. H06-0221
SR 500
Art.nr. H06-0121
Easily operated battery powered fan with particulate- or combination filters.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

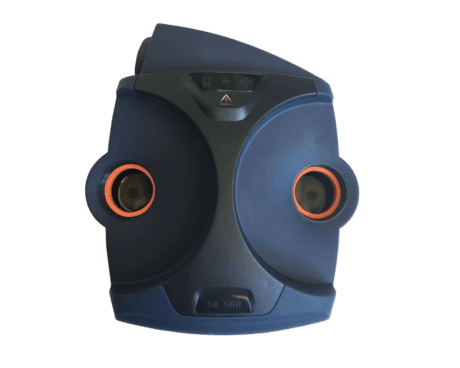

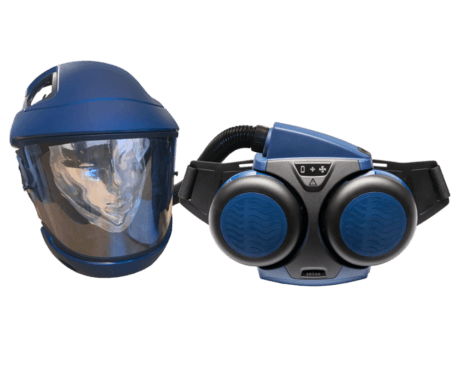

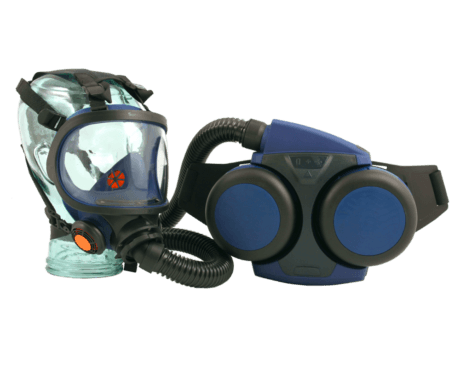

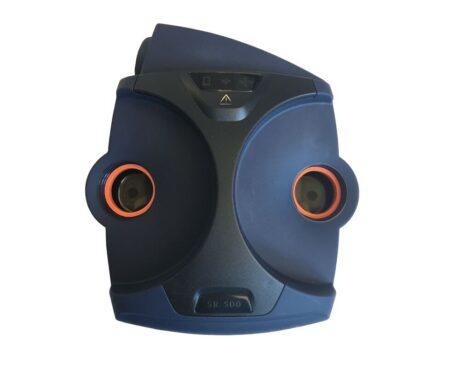

The SR 500 system is a belt mounted Powered Air-Purifying Respirator (PAPR) with tight fitting face pieces, loose fitting respirators or loose fitting hoods that protects against particulates, gases and vapors, or a combination.
It is designed to be used in oxygen sufficient and non-immediately dangerous to life and health (IDLH)
environments. The SR 500 PAPR system functions as an alternative to Air Purifying Respirators (APR) in
all situations for which these are recommended. This applies particularly to work that is hard, warm or of
long-duration. The filtered air is supplied through a breathing hose to the tight fitting face piece, loose fitting respirators or loose fitting hoods. The above-atmospheric pressure then generated prevents pollutants from the surroundings from penetrating into the breathing zone.
- Number
- H06-0121
- Material
- ABS, Activated carbon, Aluminium, CA, Cotton, EPDM, Fabric, Glass, , Impregnated activated carbon, Leather, NX, PA, PC, PC/ABS, PE, PEHD, PET, PETG, Polyester, , PP, Proban, PUR, PVC, Rubber, Silicone, Steel, TAC, TPE, Tyvek®
- Color
- Black, Blue, Brown, Gold, Green, Grey, Magenta, Olive, Orange, Silver, Transparent, White, Yellow
- Shelf life (years)
- 5
- Country of manufacture
- Sweden
- Operating temp.
- 14 to 131 °F (-10 to +55 °C), < 90 % RH
- Storage temp.
- 4 to 104 °F (-20 to +40 °C), < 90 % RH
- Model
- SR 500
- Airflow rate (l/min)
- 175-240
- Assign. protection factor
- 25, 50, 1000
- Cell type
- Li-Ion 14,4V 3,5 Ah
- Approval
- NIOSH 42 CFR part 84
Exploded view
SPRH06-1121-SR-500-System-overview-US-EN-Rev-04.pdfUser’s Instruction
L67-0421-NIOSH-Labels-SR-500-PAPR-Rev-08.pdfExploded view
SPRH06-0121-SR-500-US-EN-Rev-06.pdfProduct leaflet
P06H-0125-SR-500-US-FR-Rev-11.pdfProduct leaflet
P06H-0121-SR-500-US-EN-Rev-11.pdfUser’s Instruction
L67-0121-SR-500-USA-Rev-12.pdfProduct leaflet
P06H-0126-SR-500-US-ES-Rev-11.pdfOperating instructions
OI06H-0121-SR-500-Rev-03.pdf- Related products and systems
