SR 562
Art.nr. H06-5112

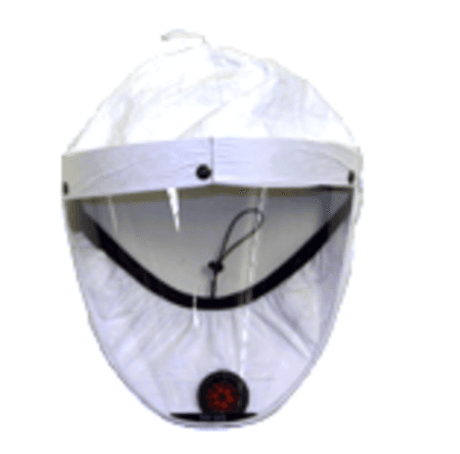

Hood
The hood together with the battery-driven SR 500, SR 500 EX or SR 700 fan and approved filters are included in Sundström
fan-assisted respiratory protective devices. The breathing hose of the hood is connected to the fan which is equipped with a filter.
The pressure generated in the hood prevents particles and other impurities from being admitted into the hood. The hood can also be used with the SR 507 compressed air equipment. This combination forms a breathing apparatus designed
for continuous air flow, for connection to a compressed air supply.
The equipment can be used as an alternative to filter protections in all situations in which the latter are recommended.
This applies particularly to situations in which the work is intensive, hot or of long duration.
- Number
- H06-5112
- Material
- ABS, Activated carbon, Aluminium, CA, Cotton, EPDM, Fabric, Glass, , Impregnated activated carbon, Leather, NX, PA, PC, PC/ABS, PE, PEHD, PET, PETG, Polyester, , PP, Proban, PUR, PVC, Rubber, Silicone, Steel, TAC, TPE, Tyvek®
- Color
- Black, Blue, Brown, Gold, Green, Grey, Magenta, Olive, Orange, Silver, Transparent, White, Yellow
- Shelf life (years)
- 5
- Country of manufacture
- Sweden
- Operating temp.
- -10 – +55 °C, < 90 % RH
- Storage temp.
- -20 – +40 °C, < 90 % RH
- Model
- SR 562
- Assign. protection factor
- 100 (3A,3B), 200 (TH3)
- Nom. protection factor
- 200 (3A,3B), 500 (TH3)
- Approval
- EN 12941:1998 + A2:2008, EN 14594:2005
- Directive 1
- (EU) 2016/425 PPE
- Directive 2
- ATEX 2014/34/EU
- Classification 2
- II G Ex ib IIB T3 Gb, II 2 D Ex ib IIIC T195° Db
Instruction for use
L67-5010-SR-561_SR-562-Rev-08.pdfProduct leaflet
P06H-5018-SR-561_SR-562-Rev-12-1.pdfOperating instructions
OI06H-5118-SR-562-Rev-03.pdfExploded view
SPRH06-5118-SR-562-Rev-03.pdf- Related products and systems
