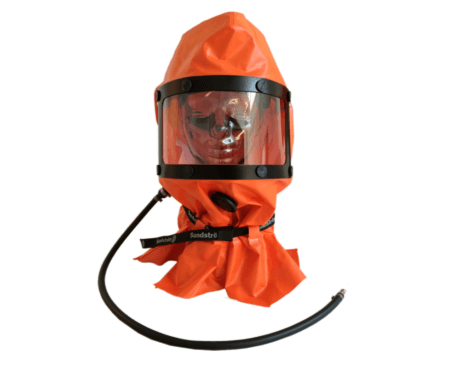

SR 63 Compressed air hood
Art.nr. H03-0312
Durable compressed air-fed hood with large impact resistant visor.
The SR 63 compressed air hood is a breathing apparatus designed for continuous air flow, for connection to a
compressed air supply. The hood is especially intended for applications involving heavy and sustained work in
environments in which the pollutants have poor warning properties or are particularly toxic.
The SR 63 is made of a material which is not liable to give rise to frictional sparking, which enables the hood to
be used in an explosive or flammable environment.

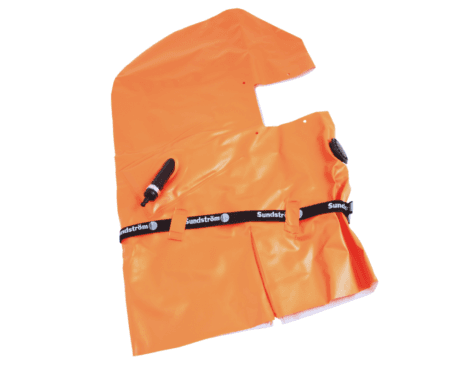

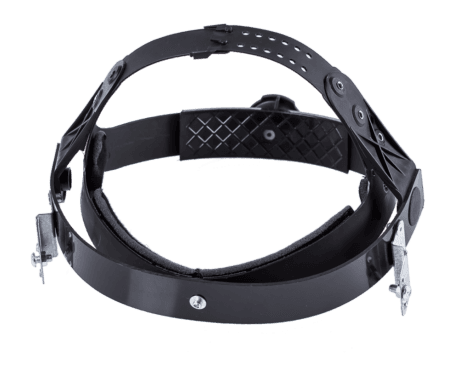

The hood is made of a material which is resistant to chemicals and has an adjustable head harness.

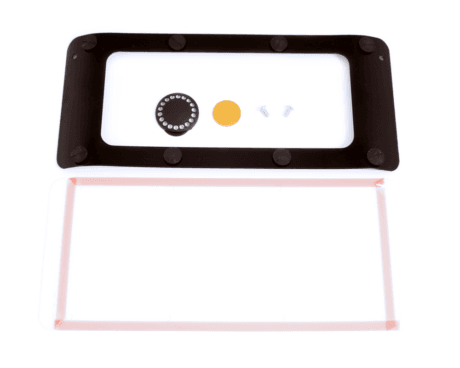

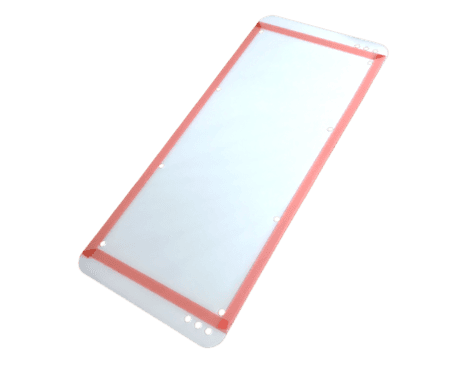

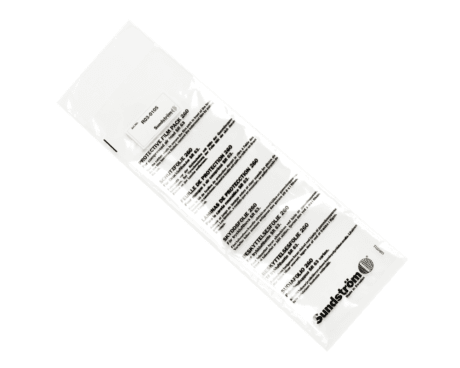

The replaceable visor is made of polycarbonate. Protective film is available in sets of three as an accessory for
the visor. A flow meter and warning whistle for temporary and continuous monitoring of the air flow rate are

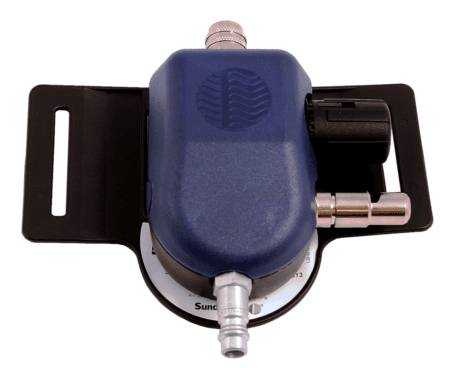

included. Control valve mounted on the user’s belt is included.
- Number
- H03-0312
- Material
- PVC, Rubber, Polyester, PC
- Color
- Orange, Black
- Shelf life (years)
- 5
- Country of manufacture
- Sweden
- Operating temp.
- -10 – +55 °C, < 90 % RH
- Storage temp.
- -20 – +40 °C, < 90 % RH
- Working pressure (bar)
- 4-7
- Model
- SR 63
- Assign. protection factor
- 100 (3A,3B)
- Nom. protection factor
- 200 (3A,3B)
- Approval
- EN 14594:2005, EN 140:1998
- Directive 1
- (EU) 2016/425 PPE
